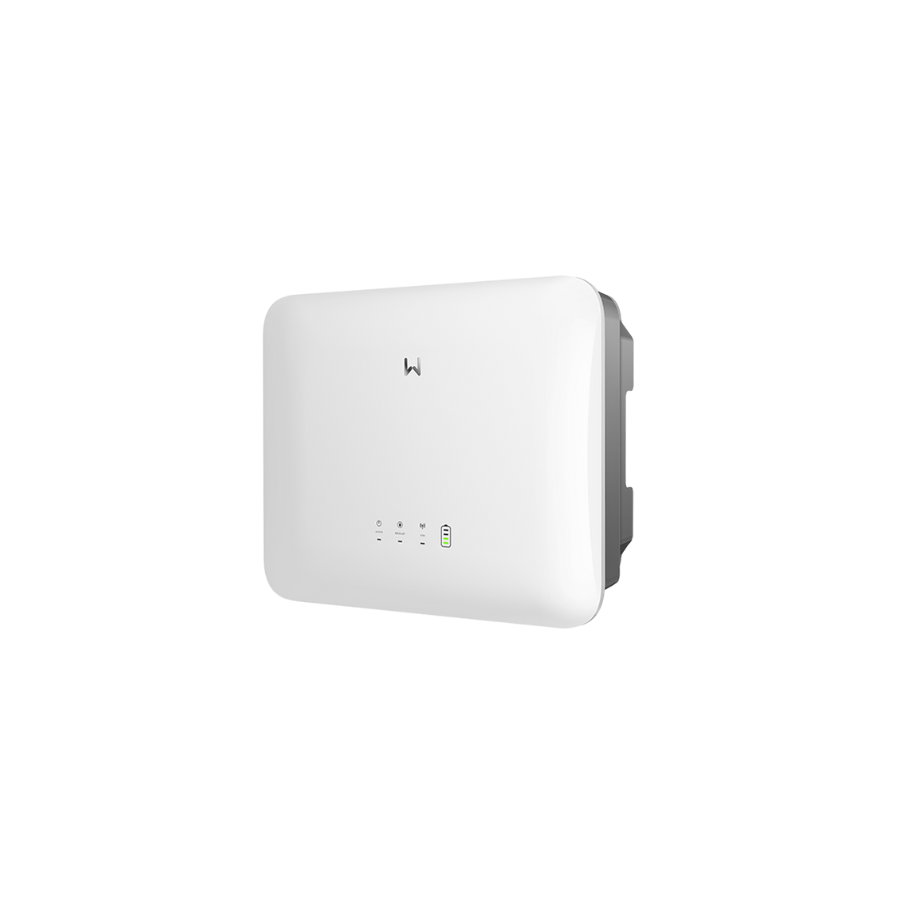

The GW6000M-ES-20 from GoodWe’s ES G2 series is a compact, high-performance hybrid inverter built to optimize solar energy usage and ensure reliable backup power.
| Model Number | GW6000M-ES-20 |
|---|---|
| Max. PV Input Power | 9,000 W |
| Max. DC Voltage | 600 V |
| MPPT Voltage Range | 60–550 V |
| Max. Input Current per MPPT | 16 A |
| - Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Current | 60 A |
| Max. Charge Power | 3,000 W |
| Max. Discharge Power | 6,300 W |
| Nominal AC Output Power | 6,000 W |
| Max. Efficiency | 97.6% |
| European Efficiency | 96.7% |
| Dimensions (W × H × D) | 505.9 × 434.9 × 154.8 mm |
| Weight | 20 kg |
| Cooling Method | Natural convection |
| Ingress Protection | IP65 |
| Communication | CAN (BMS), RS485 (meter), WiFi/LAN/4G |
The GoodWe GW6000M-ES-20 hybrid inverter is engineered to enhance self-consumption and energy autonomy in residential solar systems. It features dual MPPTs with up to 32A input current, supporting up to 9,000 W of PV input. The inverter offers UPS-level switching in under 10 ms, ensuring uninterrupted power for critical loads like air conditioners. It supports lithium-ion and lead-acid batteries (48V), with a battery voltage range of 40–60 V. The unit delivers up to 6,000 W nominal output and can discharge up to 6,300 W, making it ideal for homes with high energy demands. With integrated safety features, remote shutdown, and smart load control, the GW6000M-ES-20 is a reliable and intelligent choice for modern solar installations.
