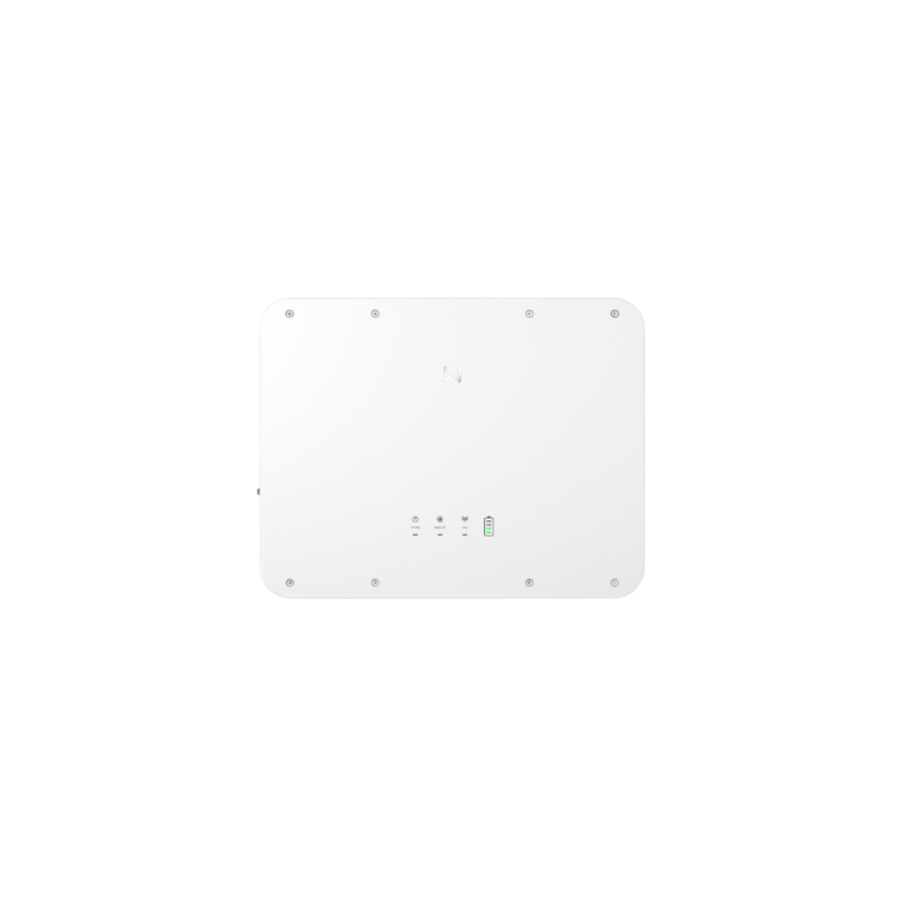

The GoodWe GW10K-ES-C10 is a 10 kW single-phase hybrid inverter from the ES Uniq series, designed for high-performance residential solar-plus-storage systems.
| Model Number | GW10K-ES-C10 |
|---|---|
| Max. PV Input Power | 15,000 W |
| Max. DC Voltage | 600 V |
| MPPT Voltage Range | 60–550 V |
| Max. Input Current per MPPT | 16 A |
| Battery Voltage Range | 40–60 V |
| Max. Charge/Discharge Current | 60 A |
| Max. Charge Power | 5,000 W |
| Max. Discharge Power | 10,500 W |
| Nominal AC Output Power | 10,000 W |
| Max. Efficiency | 97.6% |
| European Efficiency | 96.7% |
| Dimensions (W × H × D) | 505.9 × 434.9 × 154.8 mm |
| Weight | 20 kg |
| Cooling Method | Natural convection |
| Ingress Protection | IP65 |
| Communication | CAN (BMS), RS485 (meter), WiFi/LAN/4G |
The GW10K-ES-C10 hybrid inverter delivers seamless integration of solar power and battery storage for homes seeking energy independence and reliability. With a 10 kW output and dual MPPTs supporting up to 32A input current, it handles high-power PV arrays with ease. The inverter supports 48V lithium-ion and lead-acid batteries, with a wide voltage range of 40–60 V. It features UPS-level switching under 10 ms, smart load control via dry contacts, and remote shutdown capabilities. Designed for flexibility and safety, it includes AFCI protection, IP65-rated housing, and multiple communication interfaces including CAN, RS485, WiFi, LAN, and optional 4G. Ideal for modern residential setups, the GW10K-ES-C10 ensures efficient energy use and uninterrupted power.
