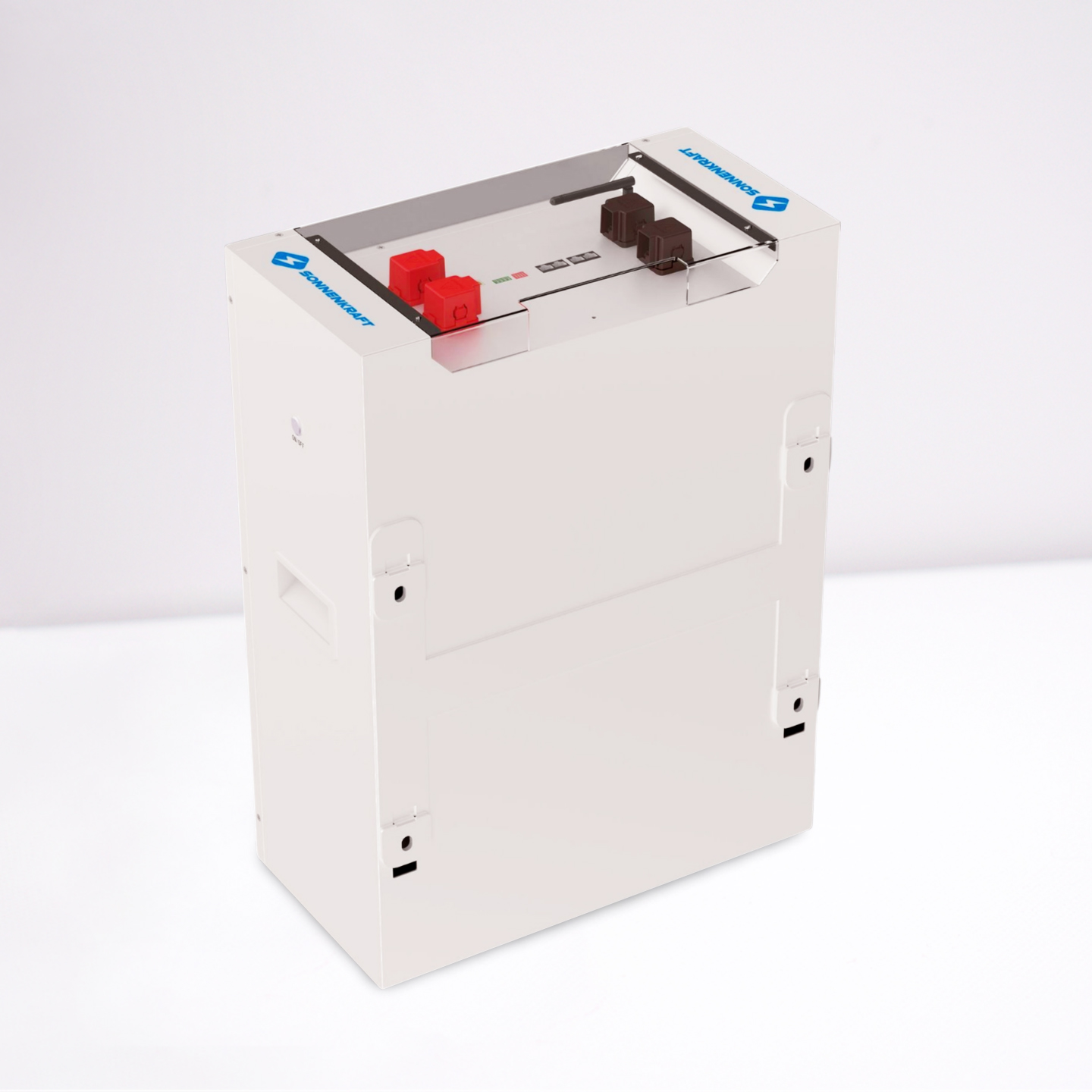

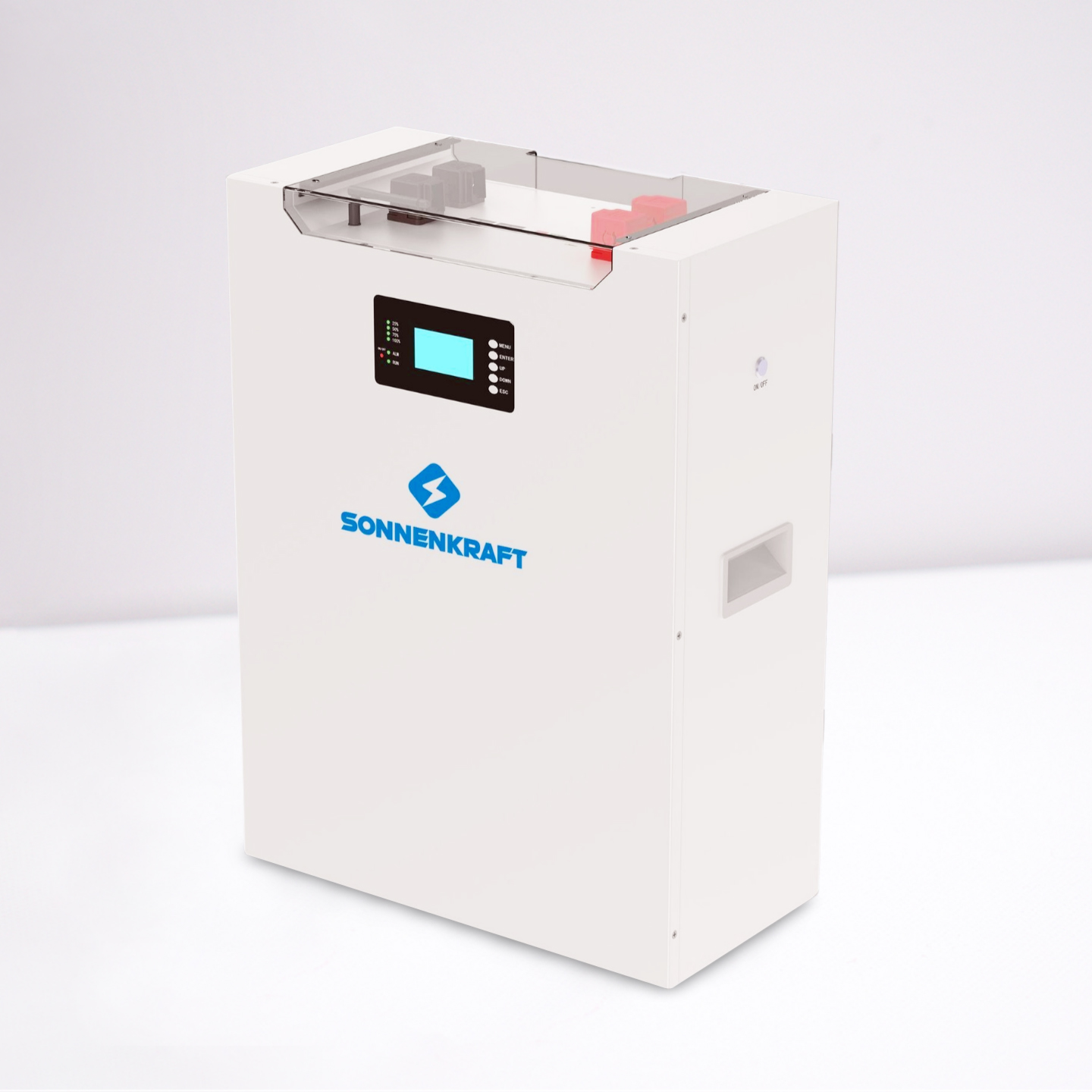

The Lithium Iron Phosphate (LiFePO₄) energy storage system offers a modular design for scalable capacity. It’s ideal for high temperatures, compact spaces, and long-lasting, reliable power backup.
| Model Number | ES-BOX34 PLUS |
|---|---|
| Nominal Energy | 10.24kWh |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200Ah |
| Cell Type | LFP |
| Standard Charge Voltage | 56.8V |
| Max. Discharge Current | 150A |
| Discharge Cut-Off Voltage | 44.8V |
| Parallel Function | Support 16 Units in Parallels |
| Communication Interface | RS485, USB, CAN |
| Cycle Life * | ≥6000 Cycles (25°C ± 2°C, 0.2C/0.2C, 80%DOD) |
| Charge Temperature Range | 0~55°C |
| Discharge Temperature Range | -20~55°C |
| Certification | Pack: CE/MSDS/UN38.3 Cell:CE/IEC 62619 by TUV/UL1973 by intertek/ROHS |
| Dimension | 712*542*315mm |
| Net Weight | 100Kg |
| Installation Method | Wall Mounted/Floor Standing |
| Optional | Wifi remote monitoring |
This energy storage system uses lithium iron phosphate (LiFePO₄) anode materials, providing superior safety, long lifespan, and reliable performance. Fully managed by an advanced Battery Management System (BMS), it protects against over-discharge, over-charge, over-current, and abnormal temperatures while enabling self-management of charging, discharging, and single-core balancing. Certified to European ROHS and SGS standards, the system is environmentally friendly, non-toxic, and pollution-free. Its modular design allows multiple batteries to be connected in parallel for extended standby time. Features include low self-discharge (up to six months storage), no memory effect, self-ventilation with low noise, and excellent high-temperature performance (-20°C to 65°C). Lightweight and compact, it delivers high energy density while maintaining flexible installation options. Ideal for homes, businesses, and renewable energy systems requiring safe, efficient, and long-lasting energy storage.
